3D Optical Video Inspection Microscope-HDMI
3D-SVM range of microscopes features very high quality optical systems which produce low distortion, high resolution images with a large and high depth field of view. The specialty of the lens is such that they are Parfocal in nature. This unique design with Parfocal lens make it technologically a superior one and easy to operate in a wide range of environments.
This microscope has a 3D angle lens attachment with which the image is changed manually from 2 Dimensional images to 3 Dimensional. With this 3D angle lens attachment, we can realize 3D image effects for observing components very clearly from various angles and also deep holes. With this 3D angle lens we can do a 360 degree rotary observation of the image on the screen. Even with this 3D angle lens, we can achieve 95mm (max) working distance which is highest level in the world for any given microscope with 3D image view.
The 3D video microscope can be widely used in the areas of micro electronics, precision electronic inspection, PCB Solder testing industries, hardware & precision parts, as well as for a lot more applications.
Model: 3D-SVM HDMI
Applications:
Electronics, Micro Electronics & other industries
Highlights:
- 2D/3D image switch, 360°manual rotation
- Real time inspection
- HD High definition and High speed Camera
- Total Magnification:10X-160X (21” LED Monitor)
- Optional Magnification with 2X lens:20X-320X (21” LED Monitor)
- Field of View: 3mm-25mm
- Working Distance: 95mm
- LED Ring Light with Brightness controller
- HDMI Camera connects Directly to HDMI Monitor through HDMI Interface
- HDMI Camera with options for manual & auto focus
- HDMI Camera has inbuilt SD Memory card for Image Storage.
- Pictures can be saved for reference.
- Video Recording Can be done
- LED Hi-Res (HDMI) monitor can be offered optionally
- Variable types of stands available (Standard stand type, Boom stand, Flexible arm stand)
Features:

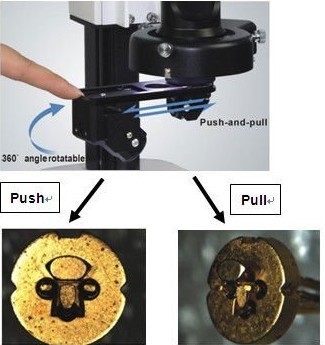

2D/3D Angle Lens Attachment:
Rotary Observation: 360 degree Angle 3D Attachment for a 1X Objective Lens (Standard) Depth of field: 6mm. W.B: Manual W.D: 95mm (Long working distance), Change 2D to 3D image Same working distance, superior resolution Consistent Centre position.

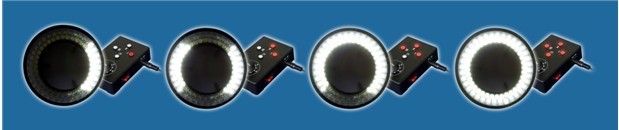

LED Ring Lights are used to provide even, radial illumination around an imaging lens for optical or imaging applications. LED Ring Light mounted around Microscope lens, directing light towards an examined object. LED Ring Lights produce uniform, directly positioned light that is ideal for reducing shadows or providing even illumination to non-reflective objects.
Camera system is an Auto-focus with 1080P/720P HD scientific grade image processing chip which has ultra-superior color reproduction and super-fast frame speed. HDMI Camera can be operated on HDMI screen independently without connecting with PC. It has a fast and short responding time of the optical signal.
- 5 megapixels Full HD High Dynamic Sensor
- 1920*1080, FULL HD, 1/2.86 Inches
- Pixel Size – 2.75*2.75um
- Photo/Video/Replay Can be done
- Direct Output to HDMI Screen, No Need the Computer, built-in Menu
- Mouse Control Camera, Connect to Mouse via USB Interface
- Real-time Inspection with Support for External SD Card
- International Standard C-type Interface

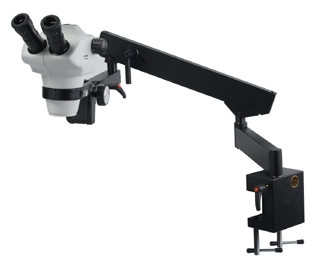

Stereo Microscope
Stereo series zoom microscope adopts streamlined integrated mechanical design, Easy operation, long working distance, clear resolved image, enclosure integrated. The microscope is used extensively world medical research and health care, biology and botany research, agriculture, and as well as in electronic component manufacturing. It’s especially suited for Electronic PCB inspections, component inspection and Solder Joint inspections.
Option: Camera Interface:
Features:
- Magnification: 5x to 45x
- Eyepiece of WF10X/20mm standard
- Zoom Ratio 1:6.4
- Working Distance 130mm
- High Resolution HDMI camera connected to trinocular head (Option)
- HDMI Camera interface with measurement (Option)
- HDMI Camera with 5MP Resolution
- HDMI Monitor offered optionally
- LED Ring light with intensity controller
- Operating Voltage: 220/240VAC 50 Hz, single phase
Image recording option:
